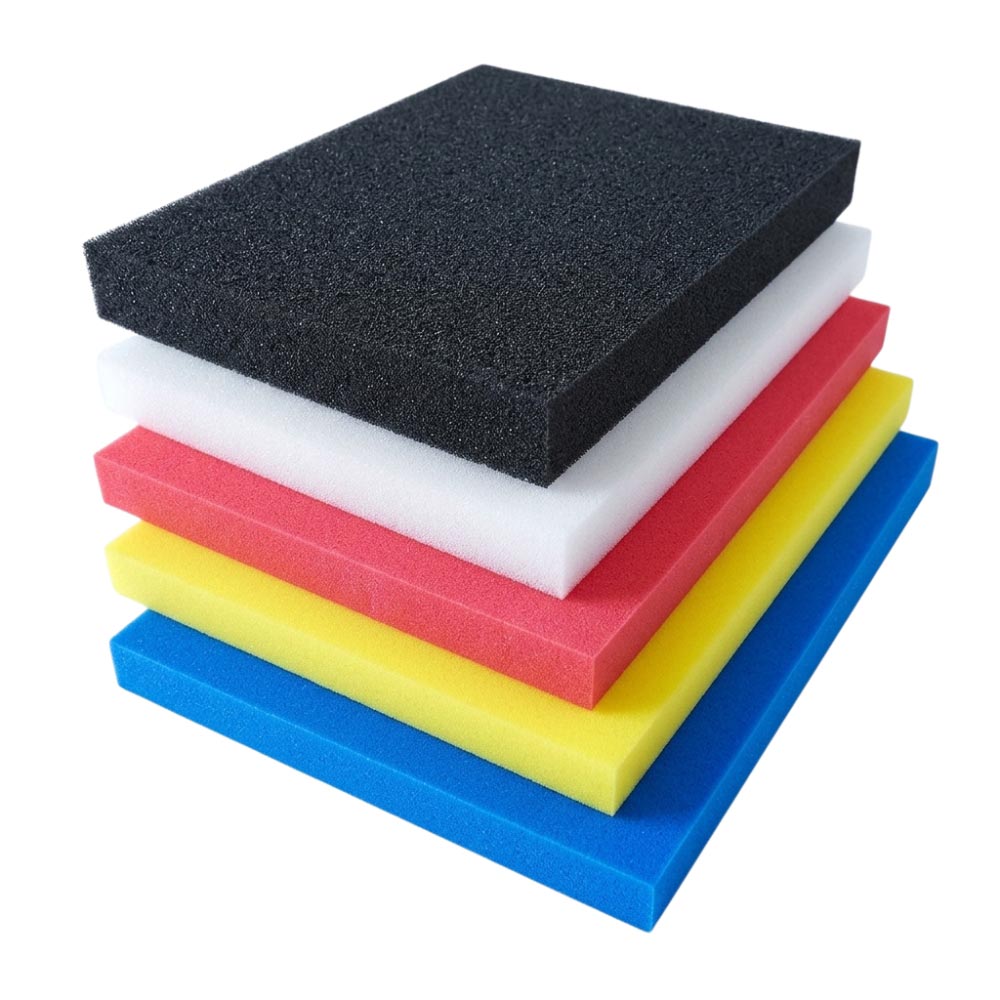

Plastazote® Plastazote LD33, with a density of 33kg/m3, is one of the most popular and commonly used Plastazote grades.
Plastazote® LD33 provides superb multi-drop shock protection, physical toughness, and excellent thermoforming capabilities. It is selected over lighter grades (like LD24) when long-term durability and structural rigidity are required, but it is preferred over heavier grades (like LD45) to avoid adding unnecessary weight and expense. It is an industry standard for high-end flight case inserts, orthopaedic shoe insoles, and professional sports body armour.
At Polyformes, we are proud to be among the first Zotefoams-approved fabricators in the UK. In short, this allows you to source any Zotefoams material, alongside custom products, tailored precisely to your requirements, etc.
The values provided in this product information represent data gathered from random samples of Zotefoam’s production of Plastazote® LD33 foam and represent typical data. These are given to the best of our knowledge and should be considered as guidance for selecting a suitable grade for a given application. Please contact our foam experts for further advice if required.
A summary of key information for Plastazote® LD33 foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 33 kg/m³ |
| Cell size (diameter) | Internal | 0.4 mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 66 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 133 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 419 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 149 % |
| Flamability (Automotive) | FMVSS.302 – Burn rate | Pass at 9mm (less than 100mm/min) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 9 (½ hr recovery) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 4 (24 hr recovery) |
| Tear strength | BS EN ISO 8067:2008 Method B | 1888 N/m |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | 58 |
| Max operating temp* | Internal | 95 °C |
| Water absorption | ISO 2896:2001 Ed3. | Less than 1% |
| Thermal conductivity (mean temp 10°C) | ISO 8301:1991 | 0.039 W/mK |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Black
Pale Grey
White
Red
Orange
Yellow
Green
Blue
Violet
Pink
These additional colours are also available, but subject to higher minimum order quantities (MOQs).
Navy
Polyformes can split/skive, laminate and butt-weld Plastazote® material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Plastazote® LD33 foam sheets are suitable for conversion using the following processes:
Plastazote® LD33 is among the most commonly used technical foams, making it suitable for the following industries and uses. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official Zotefoams suppliers
Widest range of options
Fabricated foam products
