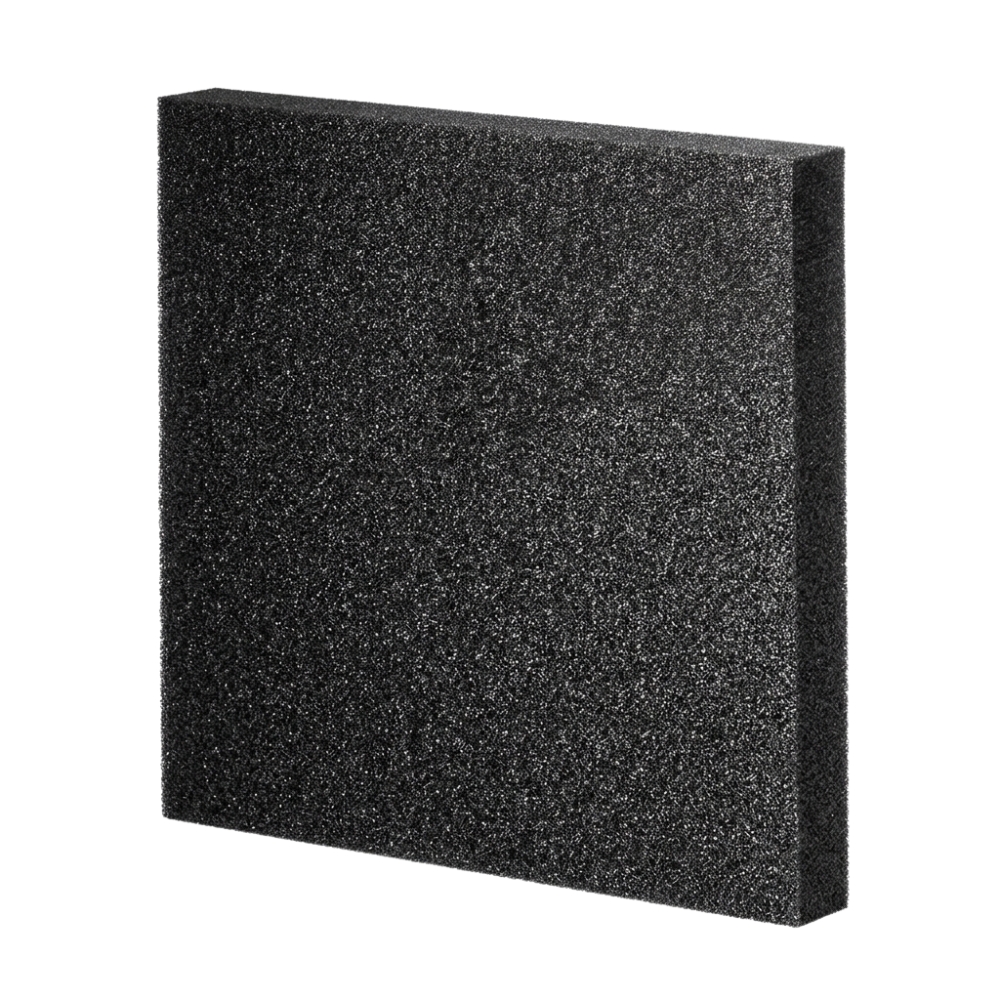

Plastazote® LD29 is a light-medium-grade material with a density of 29kg/m3.
Plastazote® LD29 offers excellent physical properties, structural stability, and a uniform cell structure, making it well-suited for complex fabrication processes. It is frequently selected over lower-density grades for its superior finish after routing or water-jet cutting, also being preferred to higher-density alternatives like LD45 when a lighter, more cost-effective foam is sufficient. As such, LD29 is popular for presentation packaging, bespoke display cases, and industrial seals or spacers.
At Polyformes, we can supply not only Plastazote® LD29, but the full range of Zotefoam® materials. Whatever foam you need, our in-house conversion equipment also enables us to supply large foam parts and products quickly, efficiently, and cost-effectively.
The values provided in this product information represent data gathered from random samples of Zotefoam’s production of Plastazote® LD29 foam and represent typical data. These are given to the best of our knowledge and should be considered as guidance for selecting a suitable grade for a given application. Please contact our foam experts for further advice if required.
A summary of key information for Plastazote® LD29 foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 29 kg/m³ |
| Cell size (diameter) | Internal | 0.8 mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 61 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 126 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 337 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 131 % |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 10 (½ hr recovery) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 3 (24 hr recovery) |
| Tear strength | BS EN ISO 8067:2008 Method B | 1760 N/m |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | 54 |
| Max operating temp* | Internal | 95 °C |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Black
These additional colours are also available, but subject to higher minimum order quantities (MOQs).
White
Polyformes can split/skive, laminate and butt-weld Plastazote® material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Plastazote® LD29 foam sheets are suitable for conversion using the following processes:
Plastazote® LD29 is among the most commonly used technical foams, making it suitable for the following industries and uses. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official Zotefoams suppliers
Widest range of options
Fabricated foam products
