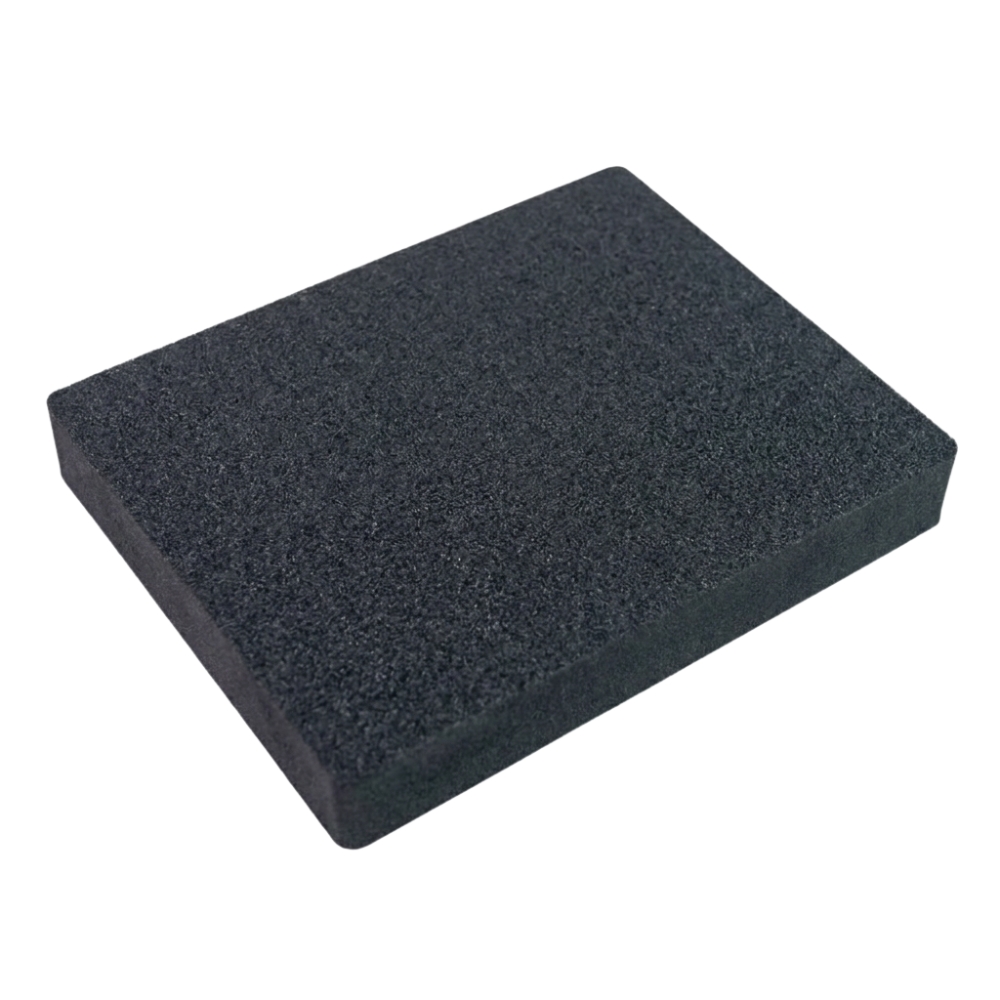

Plastazote® LD30 SD is a medium-grade static-dissipative material with a density of 30kg/m3.
Plastazote® LD30 SD is formulated to have static-dissipative properties that slow the movement of electrical charges, protecting sensitive components from sudden shocks. This is in contrast to conductive grades, which ground electrical charges instantly. It is selected over standard conductive foams (such as CN grades) when a slower, controlled electrical discharge is safer for the specific electronics. It is used extensively in electronic assembly-line surface mats, component-handling trays, and telecommunications equipment packaging.
If you’re unsure whether Plastazote® is the best option for your application, the Polyformes team are here to help. We provide objective, expert guidance on material selection, and can leverage our full suite of conversion machinery to deliver the exact foam products or material you need.
The values provided in this product information represent data gathered from random samples of Zotefoam’s production of Plastazote® LD30 SD foam and represent typical data. These are given to the best of our knowledge and should be considered as guidance for selecting a suitable grade for a given application. Please contact our foam experts for further advice if required.
A summary of key information for Plastazote® LD30 SD foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 30 kg/m³ |
| Cell size (diameter) | Internal | 0.4 mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 79 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 148 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 387 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 64 % |
| Surface resistivity | ANSI/ESD STM11.11-2015 | 3 x 10⁷ Ω/sq. |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 10 (½ hr recovery) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 5 (24 hr recovery) |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | 61 |
| Max operating temp* | Internal | 95 °C |
| Water absorption | ISO 2896:2001 Ed3. | Less than 1% |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Black
Polyformes can split/skive, laminate and butt-weld Plastazote® material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Plastazote® LD30 SD foam sheets are suitable for conversion using the following processes:
Plastazote® LD30 SD is among the most commonly used technical foams, making it suitable for the following industries and uses. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official Zotefoams suppliers
Widest range of options
Fabricated foam products
