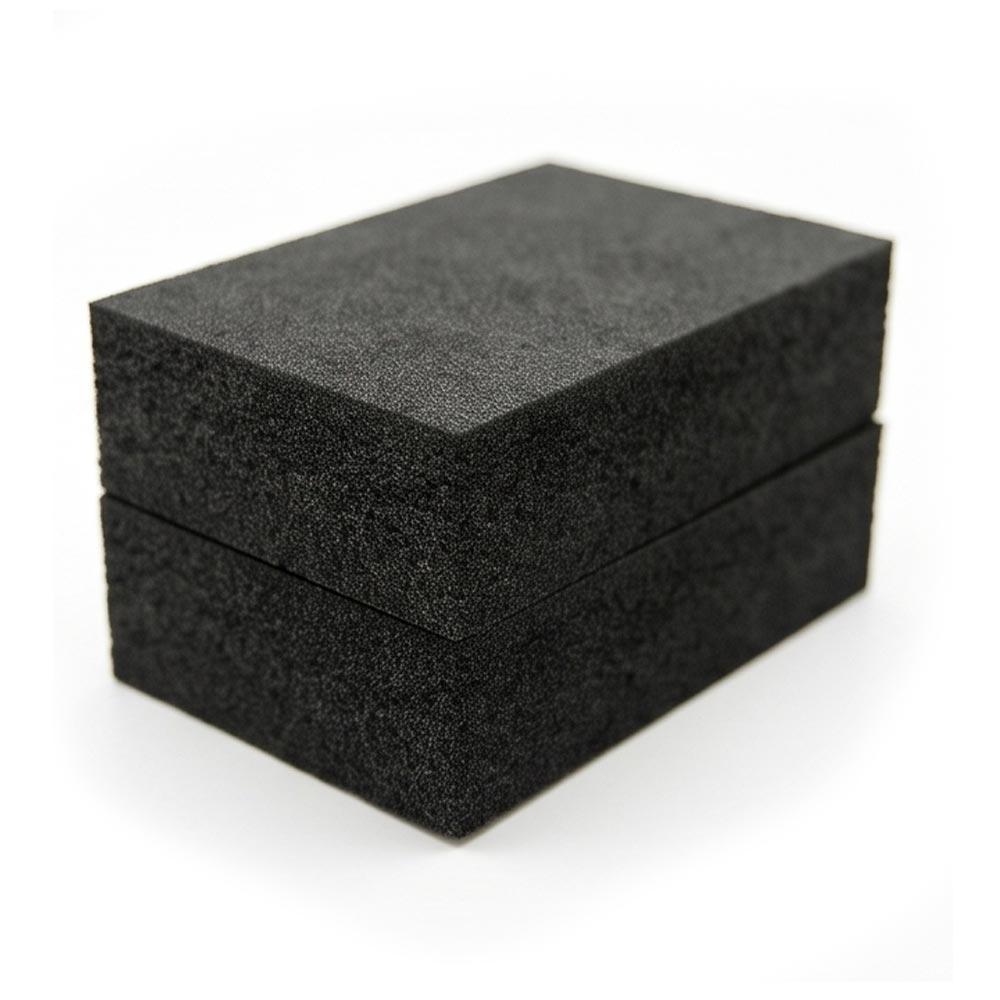

Microlen PE45XL, with a density of 41-51kg/m3, is supplied in oversized sheets to improve conversion efficiency.
Microlen PE45XL is a structurally firm, robust, closed-cell cross-linked polyolefin foam manufactured in very large physical block dimensions. Its size alone makes it a high-efficiency option for applications requiring wide-format, continuous protective cushioning and high-dimensional stability. It is particularly suited to producing continuous layouts in a single piece, eliminating the need for visible laminated seams. Manufacturers and distributors typically use Microlen PE45XL to create large-scale protective surface wraps, premium athletic mat cores, and wall insulation sheets.
As well as the right material, maximising yield on large-format sheets requires the right conversion technology. At Polyformes, we combine extensive material stockholding with cutting-edge equipment to deliver custom, large-scale foam inserts and products of the highest quality.
Please note that this technical information on Microlen PE45XL does not constitute a guarantee of performance, and is provided for guidance only. Please contact our foam experts for further advice if required.
The internal methods IE-03, IE-04, IE-05, IE-06 and IE-07 are based by standards ISO 1923, ISO 845, ISO 844, ISO 1926 and ISO 1856-B, respectively.
A summary of key information for Microlen PE45XL foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 46 kg/m³ (+/- 5) |
| Cell size (diameter) | Internal | 0.22 mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 85 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 143 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 272 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 180 % |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 9 (½ hr recovery) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 3 (24 hr recovery) |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | >60 |
| Max operating temp* | Internal | 100 °C |
| Water absorption | ISO 2896:2001 Ed3. | Less than 1% |
| Thermal Conductivity (at 10°C) | ISO 2581 | 0.038 W/mK |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Black
Polyformes can split/skive, laminate and butt-weld Microlen material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Microlen PE45XL foam sheets are suitable for conversion using the following processes:
Although similar to Plastazote® in structure, the different manufacturing process for Microlen (chemical vs physical cross-linking) makes it more suited to the below applications. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official suppliers
Widest range of options
Fabricated foam products
