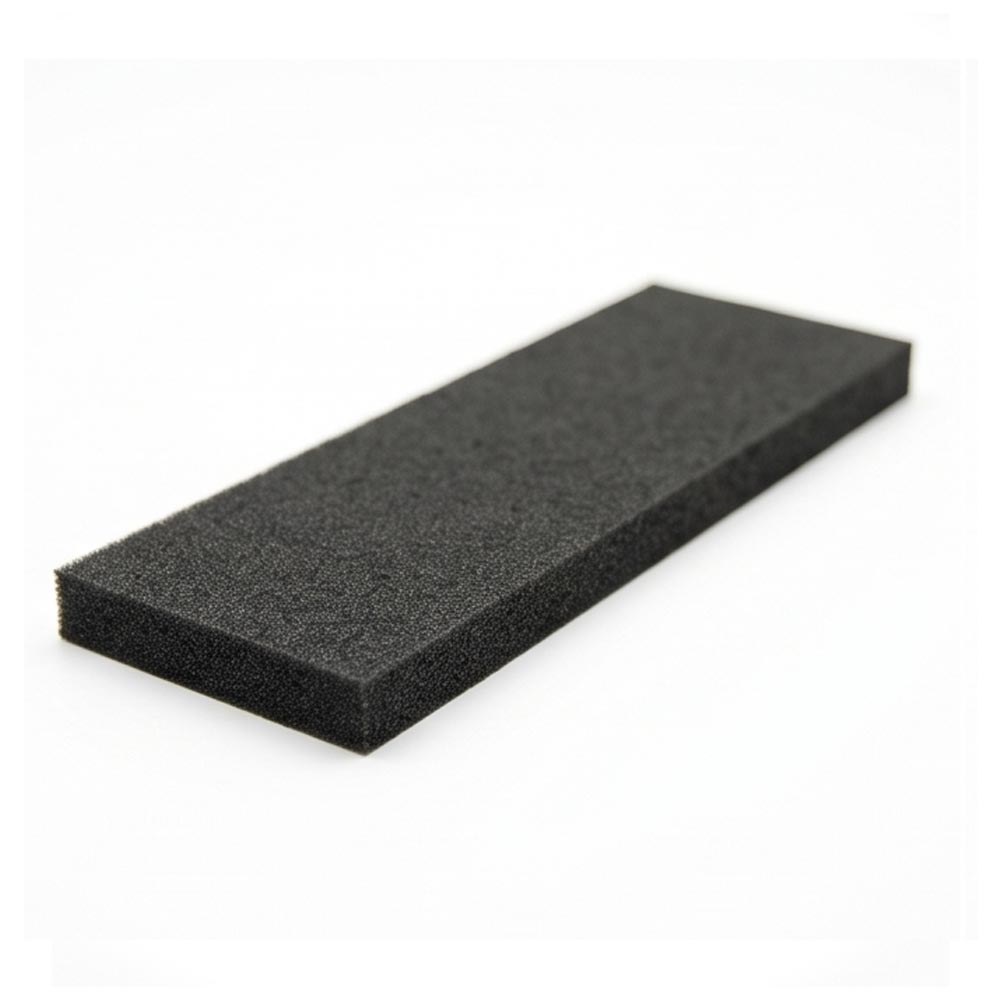

Microlen PE45X is a low-to-medium-density foam material, with a density of 41-51kg/m3.
Microlen PE45X is a robust, highly stable closed-cell cross-linked polyolefin foam. Its properties make it suitable when material toughness, retention of structural form, and low thermal conductivity are required. As such, it is typically selected over lower-density grades (such as PE30X) when a stiffer, higher-performing cushioning barrier is needed to protect heavier products or technical gear. Manufacturers and distributors frequently use Microlen PE45X as a reliable supportive layer in custom packaging, structural void-fill insulation, and heavy-duty surface protectors.
Our team of foam experts at Polyformes can provide free and impartial advice on the best foam grade and type for your specific product, industry, and application. We can also supply raw material or converted products as required.
Please note that this technical information on Microlen PE45X does not constitute a guarantee of performance and is provided for guidance only. Please contact our foam experts for further advice if required.
The internal methods IE-03, IE-04, IE-05, IE-06 and IE-07 are based on standards ISO 1923, ISO 845, ISO 844, ISO 1926 and ISO 1856-B, respectively.
A summary of key information for Microlen PE45X foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 46 kg/m³ (+/- 5) |
| Cell size (diameter) | Internal | 0.22 mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 85 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 143 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 272 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 180 % |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 9 (½ hr recovery) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 3 (24 hr recovery) |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | >60 |
| Max operating temp* | Internal | 100 °C |
| Water absorption | ISO 2896:2001 Ed3. | Less than 1% |
| Thermal Conductivity (at 10°C) | ISO 2581 | 0.038 W/mK |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Black
Polyformes can split/skive, laminate and butt-weld Microlen material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Microlen PE45X foam sheets are suitable for conversion using the following processes:
Although similar to Plastazote® in structure, the different manufacturing process for Microlen (chemical vs physical cross-linking) makes it more suited to the below applications. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official suppliers
Widest range of options
Fabricated foam products
