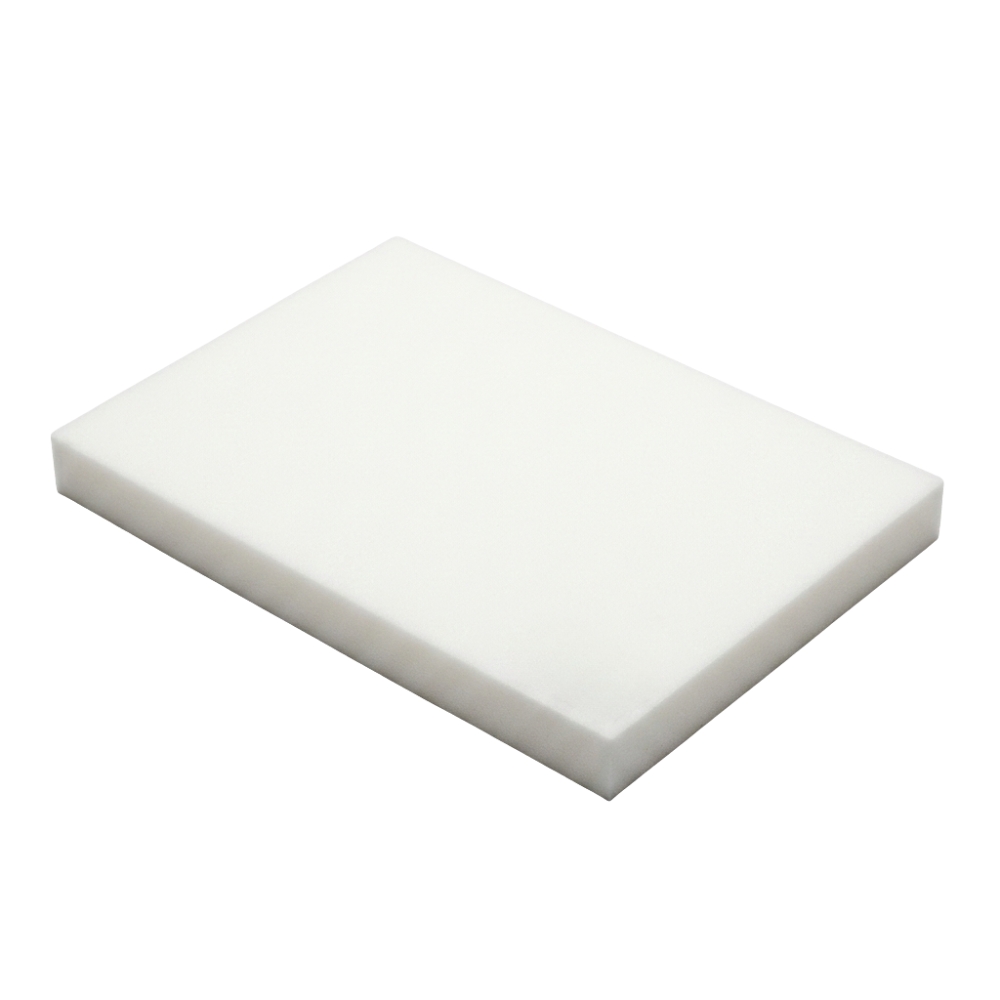

ZOTEK® NC50 is a medium-density, high-performance nylon grade with a density of 54kg/m3.
A closed-cell polyamide 11 (nylon) foam, ZOTEK® NC50, provides an exceptional combination of high energy absorption, outstanding impact protection, extreme durability, and excellent chemical resistance. ZOTEK® NC50 is preferred over the lighter NC35 grade for applications that experience more severe impact forces or require higher load-bearing capacity and structural stiffness while retaining nylon’s high-temperature threshold. As such, it is a popular choice for advanced ballistic vest padding, heavy-duty military tactical gear, ruggedised sports protection, and high-impact industrial components.
If you’re unsure whether ZOTEK® is the best option for your application, we can help. Our foam experts can provide objective, unbiased guidance on material selection, supply sheets, converted packaging, or bespoke foam products, as required.
This product information (provided by Zotefoam) provides typical values for ZOTEK® NC50 foam and does not constitute a specification. Please contact our foam experts for further advice if required.
A summary of key information for ZOTEK® NC50 foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 54 kg/m³ |
| Cell size (diameter) | Internal | 0.34mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 305 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 440 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 1350 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 85 % |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 14 (½ hr recovery) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 8 (24 hr recovery) |
| Flamability (Automotive) | FMVSS.302 - Burn rate | Pass at 6mm |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | 81 |
| Max operating temp* | Internal | 175 °C |
| Thermal conductivity (mean temp 25°C) | ISO 8301:1991 | 0.037 W/mK |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
White
Polyformes can split/skive, laminate and butt-weld ZOTEK® material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
ZOTEK® NC50 foam sheets are suitable for conversion using the following processes:
The ZOTEK® NC foams display the characteristics of structural nylon (toughness, durability, and very high-temperature thermal stability), making them suitable for several applications. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official Zotefoams suppliers
Widest range of options
Fabricated foam products
