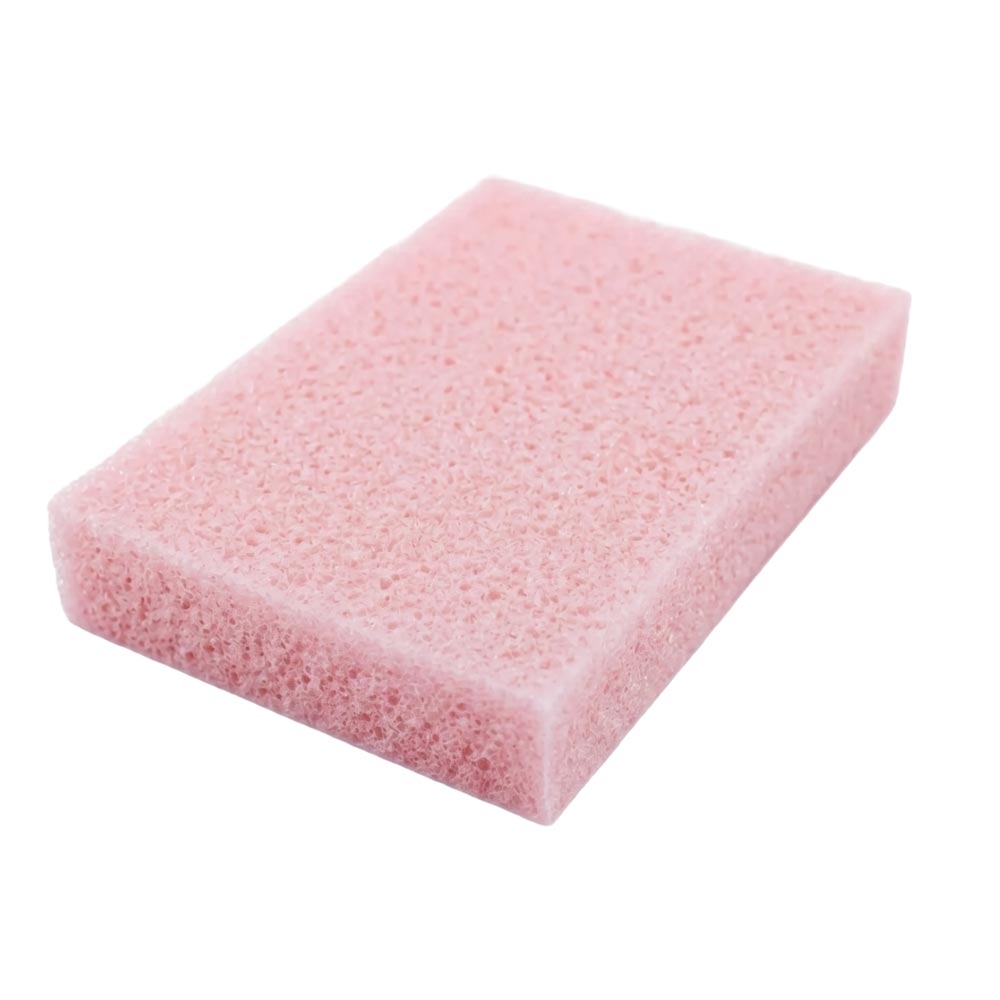

While Stratocell® AS provides similar physical properties to regular Stratocell® (at 30kg/m3), it includes anti-static agents to protect against electrostatic discharge (ESD).
A closed-cell polyethylene foam, Stratocell® AS uses chemical additives during manufacture to provide surface resistivity of typically 109-1012 ohms. This property safely dissipates static electricity over time without causing sudden, damaging electrical discharges, protecting sensitive electronics. It is almost exclusively used for packaging microchips, circuit boards, server components, and medical equipment. Sealed Air add a pink dye so users can easily distinguish it from non-ESD-safe materials.
In addition to Stratocell® AS, Polyformes can supply a wide range of alternative anti-static and conductive foams. Coupled with our material knowledge and in-house conversion equipment, we can supply solutions precisely tailored to the requirements of the electronics industry.
The data presented for this product is for unfabricated polyethylene foam product. While values shown are typical of this product, they should not be construed as specification limits. Sealed Air (the manufacturer of Stratocell® AS) makes no warranties, express or implied, including without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product, information or recommendations referred to herein, and shall not be liable for any loss or damage, directly or indirectly, related to such product, information or recommendations or for consequential or incidental damages.
Users should test each application to determine suitability of the product for the intended use, or speak with one of our experts at Polyformes for further information/advice.
A summary of key information for Stratocell® AS foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Nominal Density | ASTM D3575-08 Suffix W ISO 845:2006 | 30 kg/m³ |
| Compressive Strength (vertical @ 25%) | ASTM D3575-08 Suffix D ISO 7214:2007 | 45 kPa |
| Compressive Strength (vertical @ 50%) | ASTM D3575-08 Suffix D ISO 7214:2007 | 95 kPa |
| Compression Set (50%) | ASTM D3575-08 Suffix B | < 90% |
| Compressive Creep (1,25 psi - 8,75 kg/dm2) | ASTM D3575-08 Suffix BB 168 hrs | < 10% |
| Compressive Creep (1,25 psi - 8,75 kg/dm2) | ASTM D3575-08 Suffix BB 1000 hrs | < 15% |
| Tensile Strength (@ peak (MD/CD)) | ASTM D3575-08 Suffix T ISO 1798: 2008 | 250 / 200 kPa |
| Tensile Elongation (MD/CD) | ASTM D3575-08 Suffix T ISO 1798: 2008 | 70 / 65 % |
| Thermal Conductivity | ASTM C-177 ISO 8301 | 0,055 W/mK |
| Water Absorption | ASTM D3575-08 Suffix L ISO 2896: 1986 | < 3 % (volume) |
| Thermal Stability (24hrs at 70° C) | ASTM D3575-08 Suffix S ISO 2796 | < 2 % |
| Surface Resistance (antistatic grade-dissipative) | EIA STD 541-2008 Section 4.3 | < 1011Ohms |
| Surface Resistance (antistatic grade-dissipative) | IEC 61340-5-1, ed.1 2007 | < 1011Ohms |
| Fire-test response Characteristics (1) | FMVSS 302 | Pass |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Pink
Polyformes can split/skive, laminate and butt-weld Stratocell® planks to the specific dimensions you require. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Stratocell® AS foam is suitable for conversion using the following processes:
The properties of Stratocell®, including its high strength-to-weight ratio and excellent impact absorption, make its suitable for use across a vast range of protective packaging and industrial applications.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official Sealed Air suppliers
Widest range of options
Fabricated foam products
