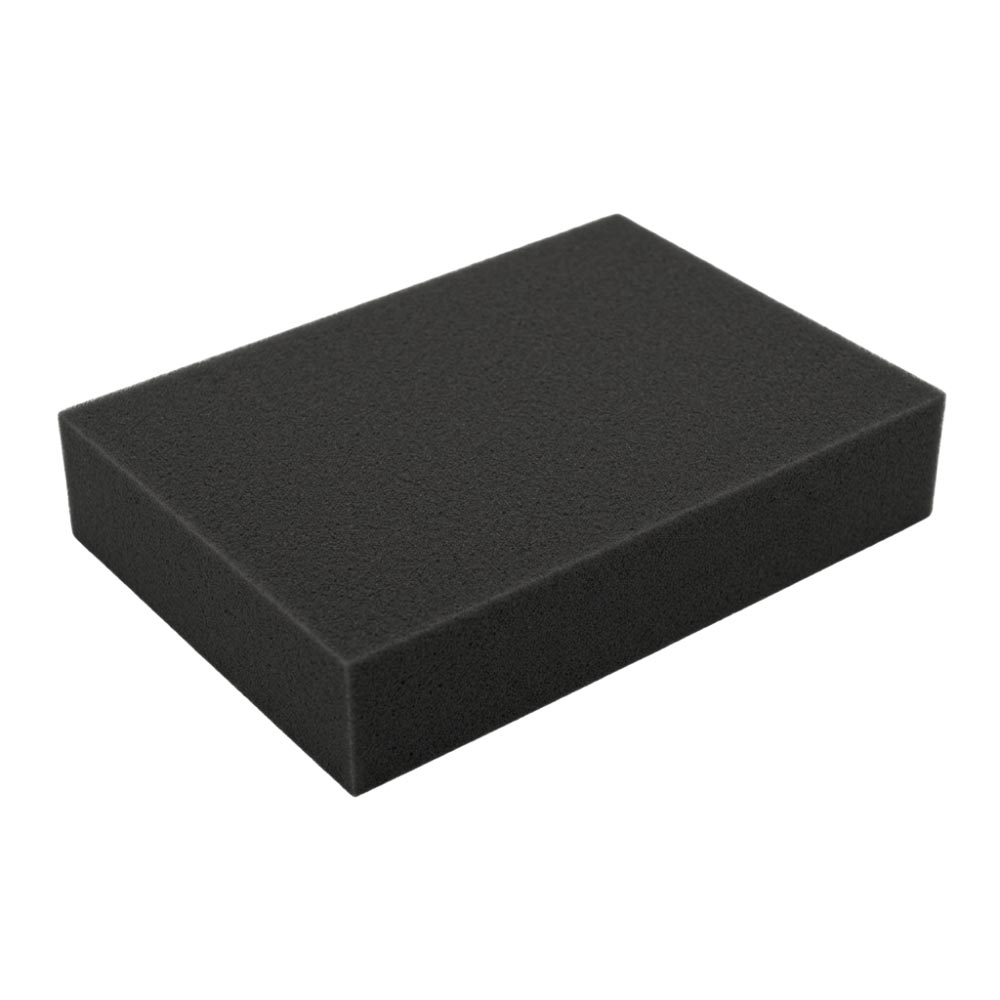

Plastazote® MP24 is a lightweight yet strong grade of material, featuring a density of 24kg/m3.
Plastazote® MP24 uses a premium metallocene-catalysed polymer. Metallocene polymers have exceptionally strong molecular bonds, allowing for the creation of ultra-lightweight material that still provides an excellent balance of cushioning performance and multi-drop shock absorption. As such, it is a popular choice for interior protective packaging, medical devices, orthotics, and lightweight case inserts.
Many foam converters do not understand the properties of the Plastazote® MP range, resulting in use in unsuitable applications, poor conversion finishes, or simply not offering it. But at Polyformes, we can supply, convert and advise on Plastazote® MP options for your business.
The values provided in this product information represent data gathered from random samples of Zotefoam’s production of Plastazote® MP24 foam and represent typical data. These are given to the best of our knowledge and should be considered as guidance for selecting a suitable grade for a given application. Please contact our foam experts for further advice if required.
A summary of key information for Plastazote® MP24 foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 24 kg/m³ |
| Cell size (diameter) | Internal | 0.2 mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 51 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 116 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 589 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 155 % |
| Flamabiliy (automotive) (<100 mm/min) | FMVSS.302 - Burn rate | Pass at 13mm |
| Tear strength | BS EN ISO 8067:2008 Method B | 1968 N/m |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | 51 |
| Max operating temp* | Internal | 80 °C |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Black
White
Polyformes can split/skive, laminate and butt-weld Plastazote® material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Plastazote® MP24 foam sheets are suitable for conversion using the following processes:
Plastazote® MP grades, being specifically designed to be lighter while offering superior mechanical strength compared to standard low-density (LD) materials, are suited to the following industries and uses. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official Zotefoams suppliers
Widest range of options
Fabricated foam products
