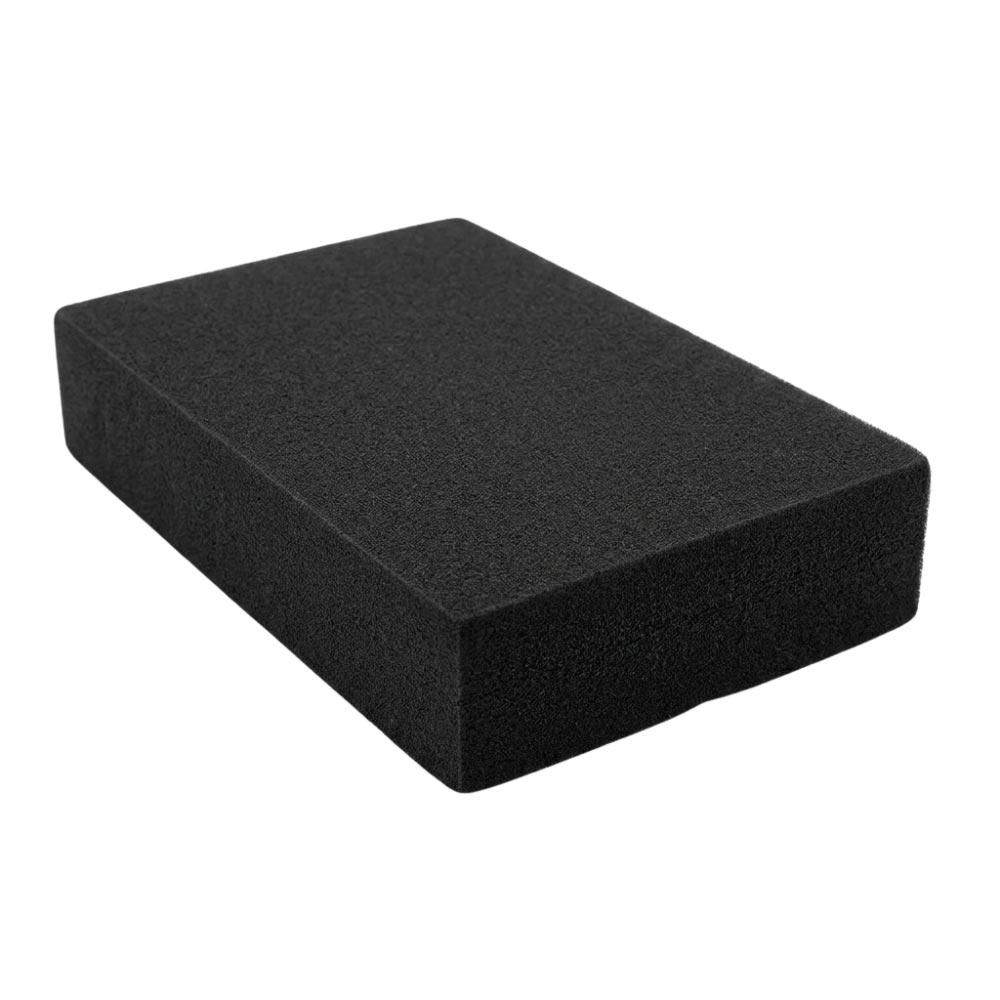

With a density of 70kg/m³, Plastazote® LD70 is the heaviest-duty material in the LD range.
Plastazote® LD70 closed-cell foam behaves almost as a semi-rigid block, providing unparalleled load-bearing performance, toughness, and durability. It is selected over all lighter grades when components are exceptionally heavy or sharp, or where the foam must survive long-term abrasion and rough environments without eroding. Typical applications include heavy engineering component transport, industrial machinery mounts, and high-load flotation systems.
Regardless of the foam material, packaging or products you require, at Polyformes, we can help. As Zotefoam® approved fabricators, we utilise state-of-the-art in-house conversion equipment to transform sheets of any size into tailored inserts, dunnage, and custom-engineered packaging solutions.
The values provided in this product information represent data gathered from random samples of Zotefoam’s production of Plastazote® LD70 foam and represent typical data. These are given to the best of our knowledge and should be considered as guidance for selecting a suitable grade for a given application. Please contact our foam experts for further advice if required.
A summary of key information for Plastazote® LD70 foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 70 kg/m³ |
| Cell size (diameter) | Internal | 0.6 mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 163 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 251 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 733 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 140 % |
| Flamability (Automotive) | FMVSS.302 – Burn rate | Pass at 5mm (less than 100mm/min) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 6 (½ hr recovery) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 3 (24 hr recovery) |
| Tear strength | BS EN ISO 8067:2008 Method B | 4020 N/m |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | 75 |
| Max operating temp* | Internal | 105 °C |
| Water absorption | ISO 2896:2001 Ed3. | Less than 2% |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Black
White
Polyformes can split/skive, laminate and butt-weld Plastazote® material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Plastazote® LD70 foam sheets are suitable for conversion using the following processes:
Plastazote® LD70 is among the most commonly used technical foams, making it suitable for the following industries and uses. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official Zotefoams suppliers
Widest range of options
Fabricated foam products
