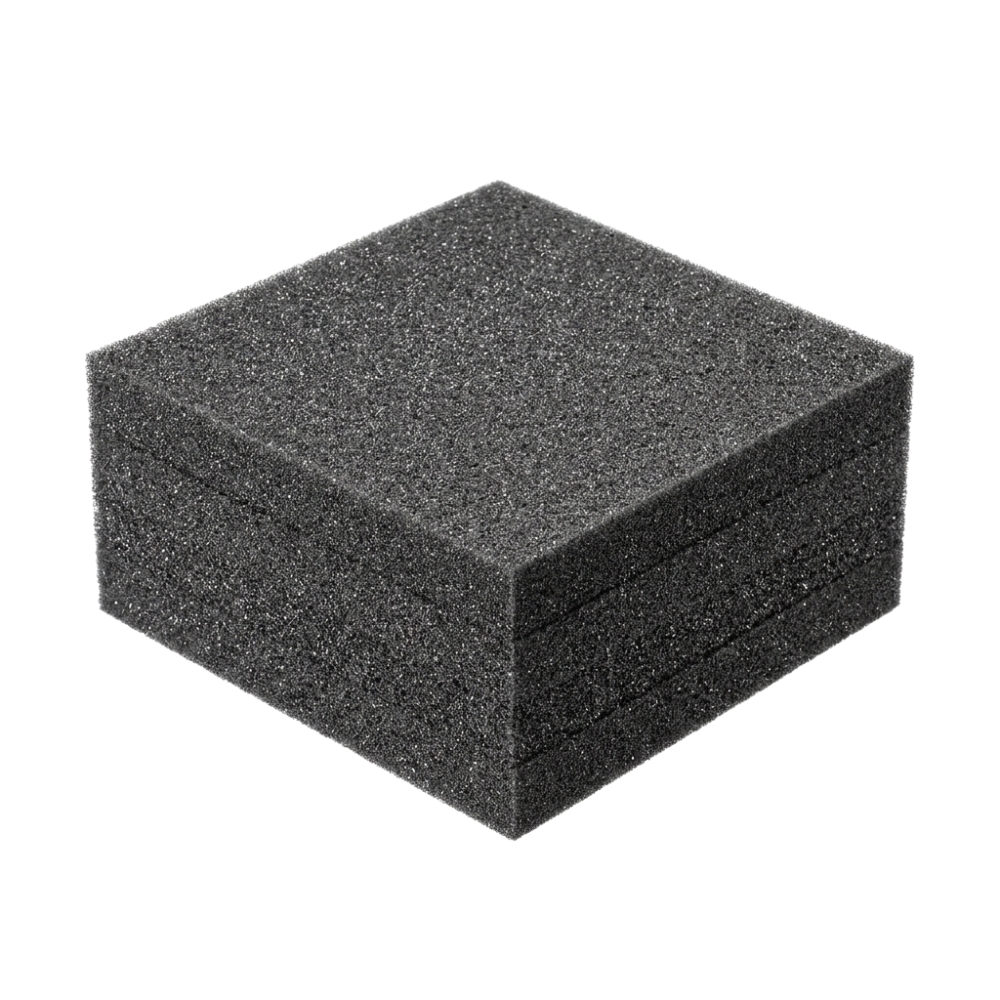

Plastazote® LD50 CN is categorised as a heavy-grade conductive material, providing a density of 50kg/m3.
Plastazote® LD50 CN combines a carbon-infused polymer with high material density, delivering exceptional electrostatic discharge (ESD) protection alongside high structural rigidity. It is chosen over lighter conductive alternatives such as LD32 CN when the static-sensitive equipment is heavy, jagged, or fragile enough to require a highly rigid, unyielding cavity insert. It is primarily utilised in defence electronics packaging, high-value medical device transit cases, and cleanroom storage fixtures.
At Polyformes, we are an official seller of Plastazote®. In addition to supplying a range of conductive foams, we can also design and manufacture high-performance electronics packaging that completely eliminates damage.
The values provided in this product information represent data gathered from random samples of Zotefoam’s production of Plastazote® LD50 CN foam and represent typical data. These are given to the best of our knowledge and should be considered as guidance for selecting a suitable grade for a given application. Please contact our foam experts for further advice if required.
A summary of key information for Plastazote® LD50 CN foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 50 kg/m³ |
| Cell size (diameter) | Internal | 0.8 mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 142 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 217 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 554 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 54 % |
| Electric conductance | ASTM D991-89 (R2014) | 2078 Ω.cm |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 8 (½ hr recovery) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 4 (24 hr recovery) |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | 70 |
| Max operating temp* | Internal | 100 °C |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Black
Polyformes can split/skive, laminate and butt-weld Plastazote® material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Plastazote® LD50 CN foam sheets are suitable for conversion using the following processes:
Plastazote® LD50 CN is among the most commonly used technical foams, making it suitable for the following industries and uses. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official Zotefoams suppliers
Widest range of options
Fabricated foam products
