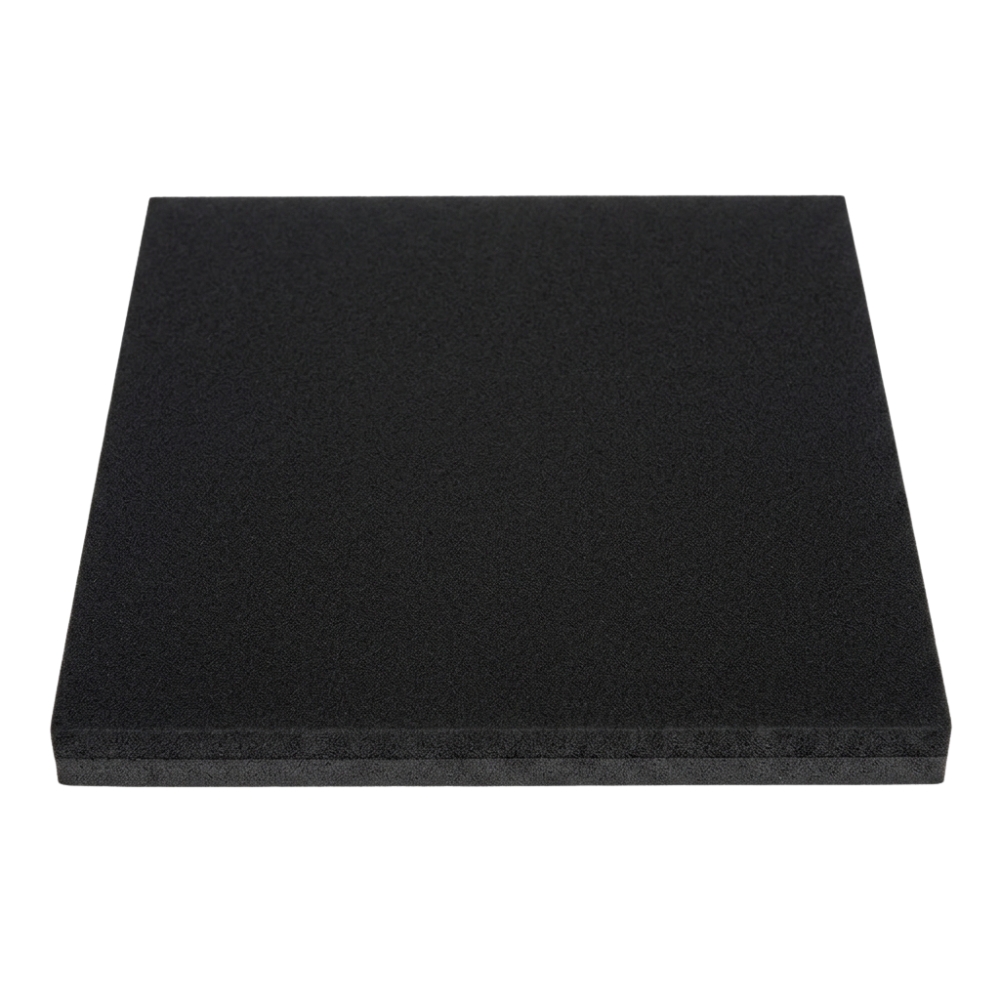

Plastazote® LD45 FR provides the benefits and density (45kg/m3) of LD45, but with flame-retardant performance.
Plastazote® LD45 FR is a tough, high-load-bearing material manufactured with advanced flame-retardant chemicals. It is specified over standard LD45 to meet stringent fire safety standards, and chosen over lighter FR grades (like LD24 FR) when the application involves supporting significant weight or coping with harsh mechanical wear. It is typically found in aerospace flight-deck padding, public transit seating substrates, and protective enclosures for industrial electronics.
Our expertise at Polyformes, alongside close working relationships with Zotefoams® and other material suppliers, enables us to supply and provide technical advice on flame-retardant and other specialist foam materials.
The values provided in this product information represent data gathered from random samples of Zotefoam’s production of Plastazote® LD45 FR foam and represent typical data. These are given to the best of our knowledge and should be considered as guidance for selecting a suitable grade for a given application. Please contact our foam experts for further advice if required.
A summary of key information for Plastazote® LD45 FR foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 45 kg/m³ |
| Cell size (diameter) | Internal | 0.4 mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 88 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 162 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 449 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 158 % |
| Flamability (Aviation) | CS 25.853 App. F 1a 1ii & FAR 25.853 App. F 1a 1ii | Pass at 3mm & 12mm (12 second test) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 8 (½ hr recovery) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 3 (24 hr recovery) |
| Tear strength | BS EN ISO 8067:2008 Method B | 2404 N/m |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | 61 |
| Max operating temp* | Internal | 105 °C |
| Thermal conductivity (mean temp 10°C) | ISO 8301:1991 | 0.038 W/mK |
| Flammability | UL94 Ed.6 | HF1 min. thickness 3mm |
| Water absorption | ISO 2869:2001 Ed3. | Less than 1 % |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Charcoal
Polyformes can split/skive, laminate and butt-weld Plastazote® material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Plastazote® LD45 FR foam sheets are suitable for conversion using the following processes:
Plastazote® LD45 FR is among the most commonly used technical foams, making it suitable for the following industries and uses. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
