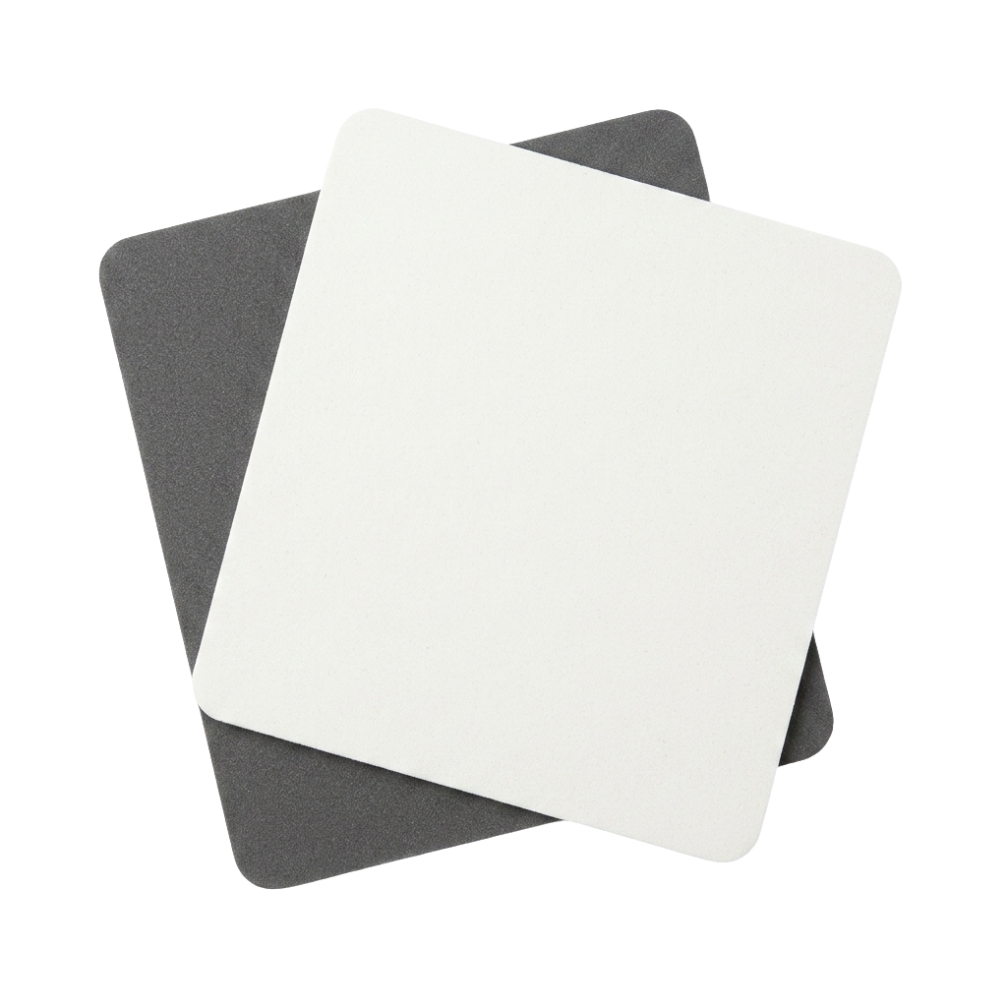

Plastazote® HD60 is a medium-grade material with a density of 60kg/m3.
Plastazote® HD60 is a closed-cell polyethylene foam that strikes an ideal middle ground between flexibility and structural firmness. It provides excellent multi-drop shock absorption and durability. HD60 is typically selected over lighter grades like HD30 when greater resistance to crushing during repeated use is required. It can also help to avoid the added weight and higher cost of higher-density options such as HD80 or HD110. As such, it is a popular choice for mid-weight presentation cases, tool-control foam inserts, sports protection gear, and orthopaedic devices that require a balance of comfort and support.
At Polyformes, we are a Zotefoams®-approved fabricator. In addition to supplying sheets or buns of material at the exact size(s) you need, our in-house conversion equipment enables us to provide a range of custom foam inserts and products, too.
The values provided in this product information represent data gathered from random samples of Zotefoam’s production of Plastazote® HD60 foam and represent typical data. These are given to the best of our knowledge and should be considered as guidance for selecting a suitable grade for a given application. Please contact our foam experts for further advice if required.
A summary of key information for Plastazote® HD60 foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 60 kg/m³ |
| Cell size (diameter) | Internal | 0.4 mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 299 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 386 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 1557 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 88 % |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 15 (½ hr recovery) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 10 (24 hr recovery) |
| Tear strength | BS EN ISO 8067:2008 Method B | 6556 N/m |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | 84 |
| Max operating temp* | Internal | 125 °C |
| Water absorption | ISO 2896:2001 Ed3. | Less than 2% |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Black
These additional colours are also available, but subject to higher minimum order quantities (MOQs).
White
Polyformes can split/skive, laminate and butt-weld Plastazote® material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Plastazote® HD60 foam sheets are suitable for conversion using the following processes:
The Plastazote® HD range of foams provide increased rigidity, higher temperature resistance, and improved moldability compared to low-density (LD) grades, making them more suited to a range of specific applications. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official Zotefoams suppliers
Widest range of options
Fabricated foam products
