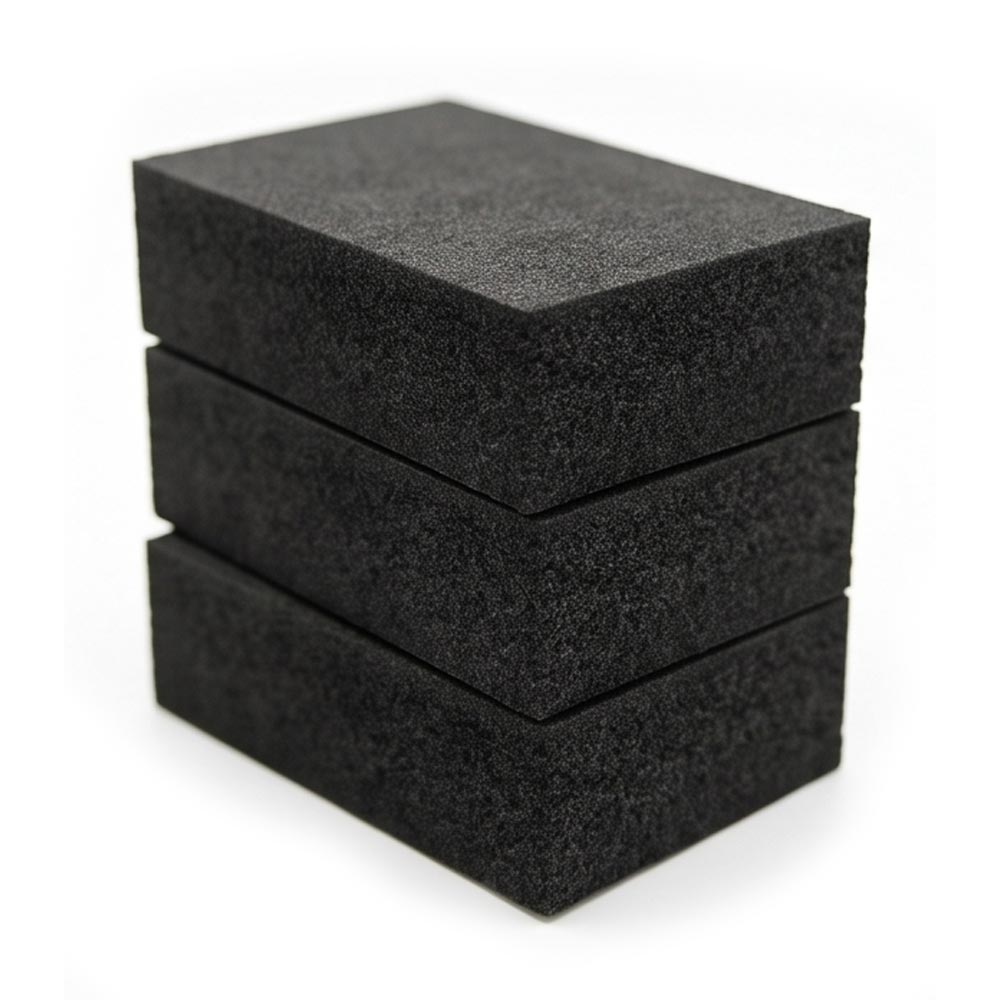

Microlen PE30XFR, with a medium-density of 31-39kg/m3, is the fire-rated option in the Microlen range.
Microlen PE30XFR is a flame-retardant, closed-cell cross-linked polyolefin foam. It is used in applications that require compliance with stringent international fire and flame-spread certifications (such as M1 and B1). It is preferred over standard PE30X solely for its fire-resistance, which helps prevent the rapid spread of fire. Microlen PE30XFR is popular for building insulation panels, public transportation seating cores, and protective packaging within the electronics and aerospace fields.
Navigating complex safety and regulatory standards can be challenging. But our expert team at Polyformes offers free, unbiased consultation on technical foam selection. Working closely with material suppliers and key stakeholders at your business, we supply both sheet materials and fully certified, bespoke foam products.
Please note that this technical information on Microlen PE30XFR does not constitute a guarantee of performance, and is provided for guidance only. Please contact our foam experts for further advice if required.
The internal methods IE-03, IE-04, IE-05, IE-06 and IE-07 are based by standards ISO 1923, ISO 845, ISO 844, ISO 1926 and ISO 1856-B, respectively.
A summary of key information for Microlen PE30XFR foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 35 kg/m³ (+/- 4) |
| Cell size (diameter) | Internal | 0.25 mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 46 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 97 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 221 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 104 % |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 12 (½ hr recovery) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 5 (24 hr recovery) |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | >44 |
| Max operating temp* | Internal | 100 °C |
| Water absorption | ISO 2896:2001 Ed3. | Less than 1% |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Black
Polyformes can split/skive, laminate and butt-weld Microlen material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Microlen PE30XFR foam sheets are suitable for conversion using the following processes:
Although similar to Plastazote® in structure, the different manufacturing process for Microlen (chemical vs physical cross-linking) makes it more suited to the below applications. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official suppliers
Widest range of options
Fabricated foam products
