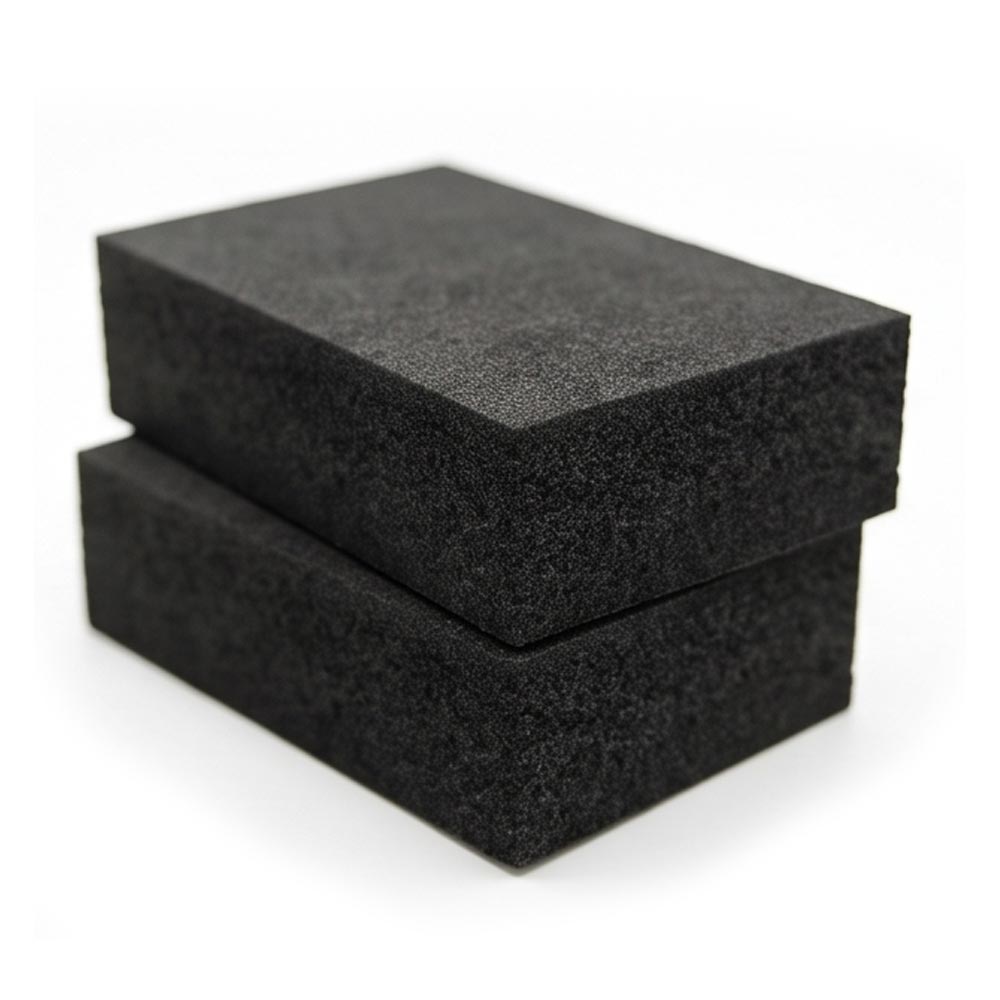

Microlen PE20X is a popular mid-density standard option in the Microlen range, with a nominal density of 37-47kg/m3.
Microlen PE20X is a highly flexible, skin-safe, closed-cell cross-linked polyolefin foam. These properties make it a versatile, high-elongation option for applications requiring excellent thermoformability and soft tactile feedback. It offers improved weight, buoyancy, comfortable touch, and efficient thermal conductivity compared to denser, more rigid technical grades. Microlen PE20X is popular for the production of aquatic recreational gear (such as swimming floats), orthopaedic orthotics, and general industrial gaskets.
At Polyformes, we are official distributors of Microlen foams in the UK. In addition to supplying sheets or buns of material at the exact size(s) you need, our in-house conversion equipment enables us to provide a range of custom foam inserts and products.
Please note that this technical information on Microlen PE20X does not constitute a guarantee of performance, and is provided for guidance only. Please contact our foam experts for further advice if required.
The internal methods IE-03, IE-04, IE-05, IE-06 and IE-07 are based by standards ISO 1923, ISO 845, ISO 844, ISO 1926 and ISO 1856-B, respectively.
A summary of key information for Microlen PE20X foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 42 kg/m³ (+/- 5) |
| Cell size (diameter) | Internal | 0.22 mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 76 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 131 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 246 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 165 % |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 10 (½ hr recovery) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 3 (24 hr recovery) |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | >59 |
| Max operating temp* | Internal | 100 °C |
| Water absorption | ISO 2896:2001 Ed3. | Less than 1% |
| Thermal Conductivity (at 10°C) | ISO 3795 | 0.037 W/mK |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Black
Polyformes can split/skive, laminate and butt-weld Microlen material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Microlen PE20X foam sheets are suitable for conversion using the following processes:
Although similar to Plastazote® in structure, the different manufacturing process for Microlen (chemical vs physical cross-linking) makes it more suited to the below applications. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official suppliers
Widest range of options
Fabricated foam products
