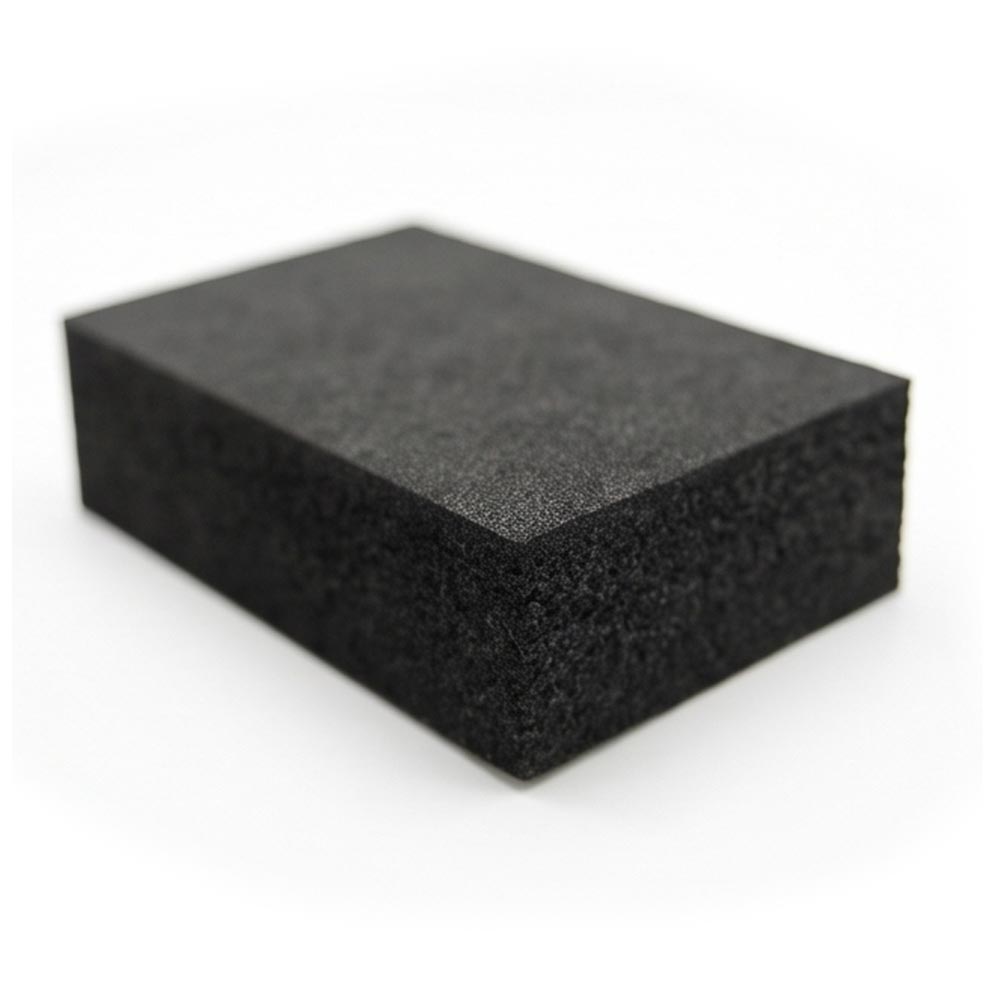

Microlen PE06X is one of the highest-density options in the Microlen range, with a density of 147-187kg/m³.
Microlen PE06X is an exceptionally rigid, highly tear-resistant, closed-cell, cross-linked polyolefin foam. These properties make it a premium high-strength option where maximum load support and resistance to compression set are required. As such, it is preferred over lighter-duty materials for its high structural integrity and long-term durability under heavy loads. Microlen PE06X is suited to producing heavy-duty industrial gaskets, structural gap fillers, and high-load-bearing insulation blocks for complex building and construction applications.
At Polyformes, we are official sellers of Microlen material. In addition to supplying sheets or buns of material in the precise dimensions you require, our in-house conversion equipment enables us to provide custom end caps, inserts, and other types of foam packaging.
Please note that this technical information on Microlen PE06X does not constitute a guarantee of performance, and is provided for guidance only. Please contact our foam experts for further advice if required.
The internal methods IE-03, IE-04, IE-05, IE-06 and IE-07 are based by standards ISO 1923, ISO 845, ISO 844, ISO 1926 and ISO 1856-B, respectively.
A summary of key information for Microlen PE06X foam material is as follows:
| Property | Test Standard | Typical Value |
|---|---|---|
| Apparent Density Skin/Skin | BS EN ISO 7214:2012 | 167 kg/m³ (+/-20) |
| Cell size (diameter) | Internal | 0.21 mm |
| Compression stress-strain (25%) | BS EN ISO 7214:2012 | 510 kPa |
| Compression stress-strain (50%) | BS EN ISO 7214:2012 | 739 kPa |
| Tensile strength | BS EN ISO 7214:2012 | 1395 kPa |
| Tensile elongation | BS EN ISO 7214:2012 | 243 % |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 4 (½ hr recovery) |
| Compression set (25% comp., 22hr, 23°C) | BS EN ISO 7214:2012 (25mm cell-cell) | 2 (24 hr recovery) |
| Shore hardness (OO scale) | BS EN ISO 868:2003 | 89 |
| Max operating temp* | Internal | 105 °C |
| Water absorption | ISO 2896:2001 Ed3. | Less than 1% |
*Please see datasheet for full details.
Download the datasheet (PDF format) for full technical details.
Please note that due to individual display settings, the colours you see on your screen may vary slightly from the actual material colour.
Black
Dark Grey
Grey
Silver
Pale Grey
White
Navy
Blue
Teal
Violet
Mauve
Cream
Healthcare
Pink
Red
Orange
Yellow
Gold
Jaguar
Green
Jade
Spring
Lime
Olive
Polyformes can split/skive, laminate and butt-weld Microlen material to the specific dimensions you require. You can also select skin or cell finishes. MOQs may apply to certain size/material options.
Please get in touch with a member of our team to discuss your requirements.
Microlen PE06X foam sheets are suitable for conversion using the following processes:
Although similar to Plastazote® in structure, the different manufacturing process for Microlen (chemical vs physical cross-linking) makes it more suited to the below applications. Please note, however, that this list is not exhaustive – if you cannot see your intended application, please get in touch to discuss your options with our foam experts.
By sourcing your foam material from Polyformes, you can expect several benefits.
Advice and knowledge
Official suppliers
Widest range of options
Fabricated foam products
